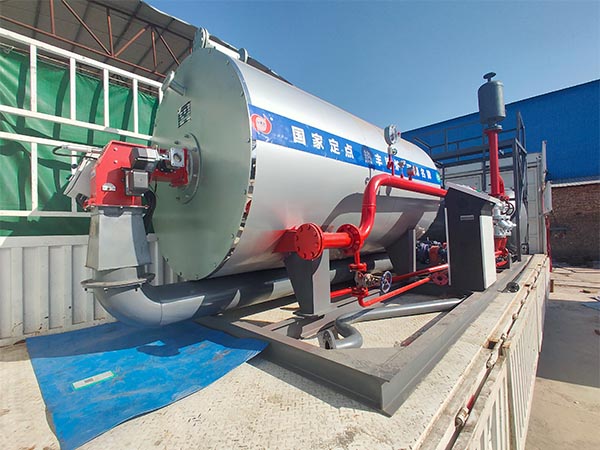

Fuel gas series thermal oil boiler

Fuel gas series thermal oil boiler

Boiler medium: High temperature heat transfer oil at 320 ℃

Work pressure: 0.8-1 Mpa

Capacity: 1400-14000 KW

Applicable fuels: natural gas, coke oven gas, biogas and other gas fuels, diesel, heavy oil, light oil, residual oil and other liquid fuels

Application industries: petroleum, chemical, synthetic fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries

YY (Q) W series fuel (gas) heat transfer oil furnace uses oil (gas) as fuel and heat transfer oil as medium. It uses a hot oil circulation pump to force the medium to undergo liquid phase circulation, and transfers the heat energy to the heating equipment before returning to the heat transfer oil furnace for reheating. It has the ability to achieve high working temperature at low pressure and high-precision control of the medium operation. The system has a high thermal utilization rate, as the modules are installed as a whole and easy to operate and maintain, making it an ideal heating equipment that is safe, efficient, and energy-saving. The fuel oil (gas) is ignited by the burner and generates a high-temperature flame, which enters the inner tube to form a radiant heating surface. It then rotates 180 ° forward through the rear of the inner tube and enters the interlayer area of the inner and outer tubes to form a convective heating surface. Then it enters the second interlayer area of the middle and outer coils at the upper part of the interlayer, and is discharged into the atmosphere through the chimney at the rear of the second interlayer area.

Functional characteristics of thermal oil furnace:

1. The thermal oil furnace can obtain low-pressure and high-temperature heat medium, which is easy to regulate, provides average heating, and can meet the process temperature requirements.

2. Liquid phase cycle heating, no condensation discharge heat loss, high thermal efficiency of the heating system.

3. There are compensating technical measures in the system for the changes in volume caused by the heating, heat release, and temperature rise and fall of the working medium.

4. There are strict technical measures to control the air, moisture, and other low volatile content in the working medium before the cycle heating.

Description of Thermal Oil Furnace Control System:

This series of thermal oil furnaces is controlled by an advanced program controller, which can achieve various functions necessary for normal combustion. It can automatically implement protective alarms in normal, accident, and emergency situations, and is equipped with corresponding liquid level controllers, pressure controllers, and temperature controllers to achieve inlet and outlet pressure indication and inlet and outlet temperature indication, ensuring that the temperature of the heat carrier fluctuates within the normal range and the pressure is within the allowable pressure fluctuation range.
