Boiler medium: high temperature pure air/high temperature mixed air
Work pressure: normal pressure
Capacity: 100000 to 18 million kcal/0.1 to 30 t/h
Applicable fuels: electric heating/electromagnetic/infrared heating
Application industry: 1. Metal surface coating - high-temperature curing after spray painting. 2. Pharmaceutical industry - drying of traditional Chinese medicinal materials. 3. Grain processing industry - deep processing and drying of grains, as well as starch drying. 4. Food industry - cookie baking, instant noodles, noodle drying, conveyor belt dryer. 5. Wood processing industry - drying of wood, fiberboard, and plywood. 6. Textile printing and dyeing - printing drying, heat setting, hot air stretching. 7. Chemical industry - drying of chemical raw materials. 8. Automotive industry - tunnel style drying room.
Far infrared heating utilizes the principle of electromagnetic radiation heat transfer to directly transfer heat and achieve the purpose of heating, thereby avoiding energy loss caused by heating the heat transfer medium and benefiting energy conservation. At the same time, infrared has the advantages of fast heating, improved product quality, and equipment space saving due to its easy generation and good controllability.

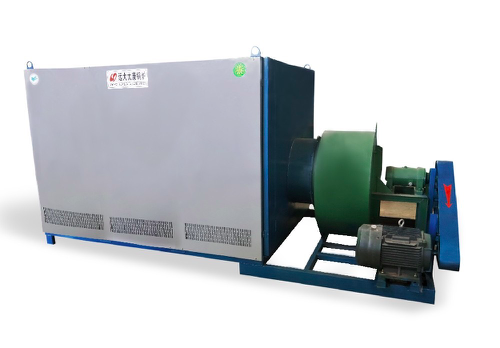

The far-infrared heating hot blast stove is composed of heating elements arranged vertically, with each heating element's heating area consisting of grids spaced 150mm apart. After being powered on, the infrared heating element transfers heat to achieve the purpose of heating the working fluid.
Carbon fiber far-infrared electric heating tube, also known as carbon fiber electric heating tube, is a device that places a carbon fiber wire in a quartz tube, vacuum seals the tube, and applies voltage to the carbon fiber wire to generate heat.
Carbon fiber quartz electric heating tube
Carbon fiber electric heating tube, also known as carbon fiber electric heating tube, infrared heating tube, infrared electric heating tube, carbon fiber infrared electric heating tube, carbon fiber infrared heating tube, etc. It involves placing a carbon fiber wire in a quartz tube, vacuum sealing the tube, and applying voltage to the carbon fiber wire to generate heat. It has the advantages of large power margin, high temperature resistance, strong high heat capacity, long service life, and adjustable power.
Advantages of electric infrared hot air stove
It has penetrating power and can heat both inside and outside air molecules simultaneously.
No need for heat transfer medium, good thermal efficiency.
It can locally heat the air molecules in the hot blast stove, saving energy.
No pollution such as dust, moisture, smoke, etc., the windows in the workshop are bright and provide a comfortable working environment.
Easy temperature control, rapid heating, and high safety.
Save the construction cost and space of the furnace body, with simple and easy installation and maintenance, low thermal inertia, no need for warm-up, saving manpower and electricity.
